Trinasolar

Vertex N G3 760W

TSM-NEG21C.20Q

Download Datasheet

264 Cells

No. of Cells

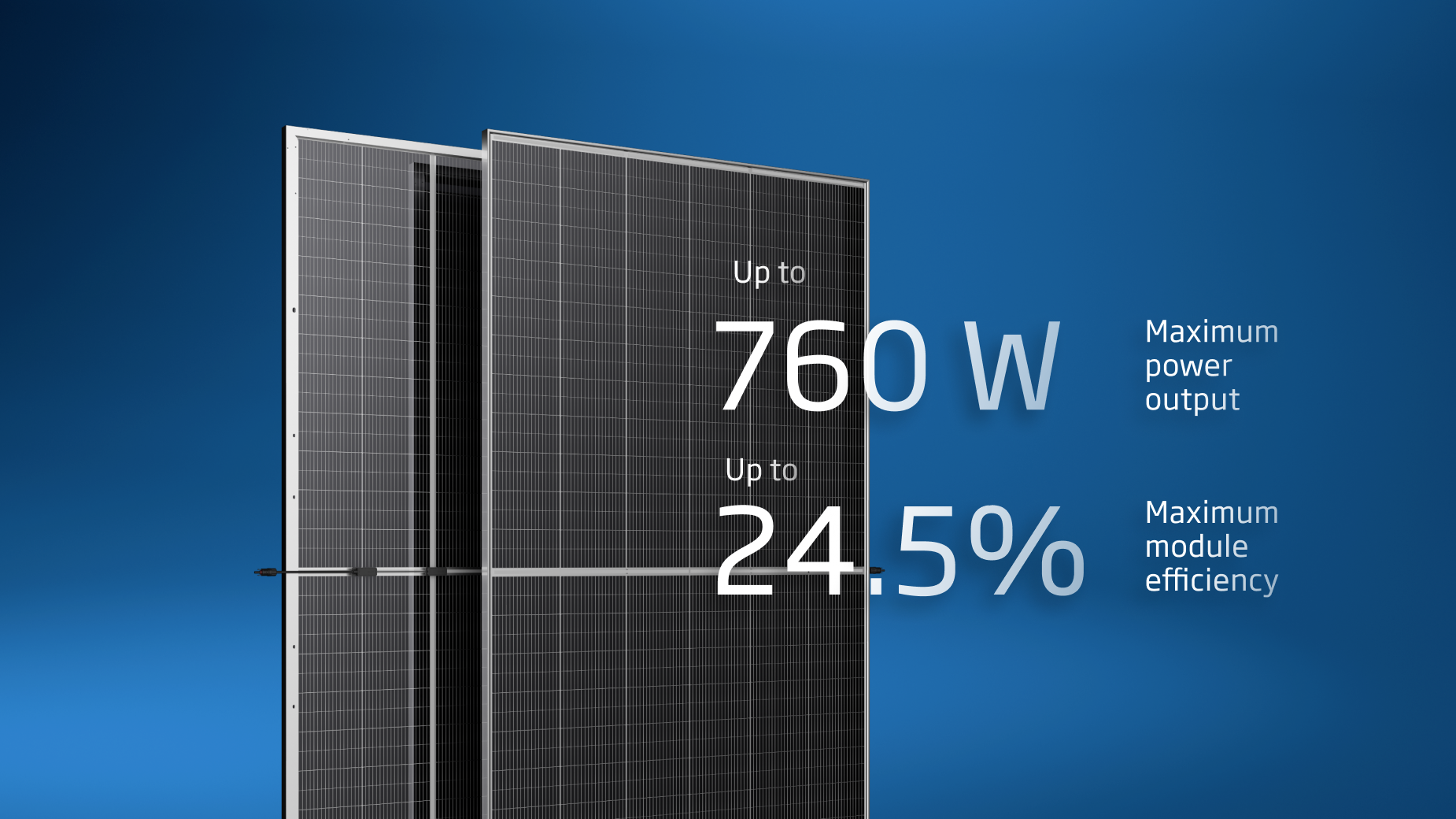

760 W

Maximum Power Output

24.5 %

Maximum Efficiency

2384 * 1303 * 33 mm

Module Dimensions

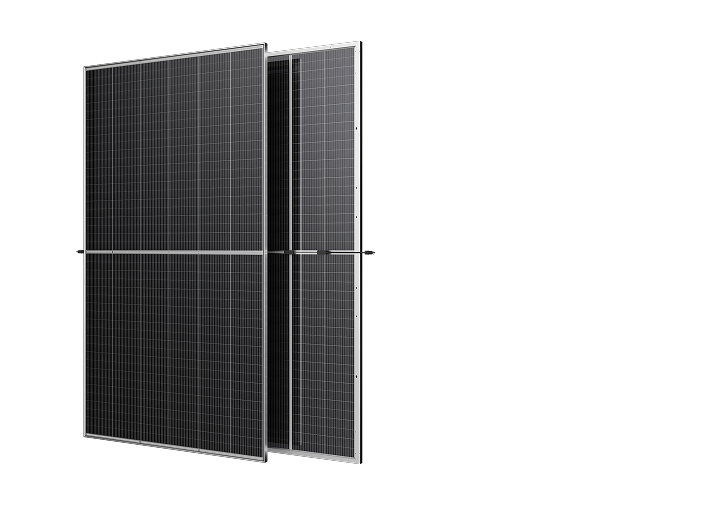

Vertex N G3 760W Module Features

Designed for Real-World Yield

85±5% bifaciality and validated low-irradiance performance

Greater Design Flexibility

Low-voltage design and standardized format reduces modules required and maximizes container space utilization

Continuous Efficiency Improvement

Reduced contact resistance, enhanced rear reflection, and edge quality repair.

Long-term Value and Reliability

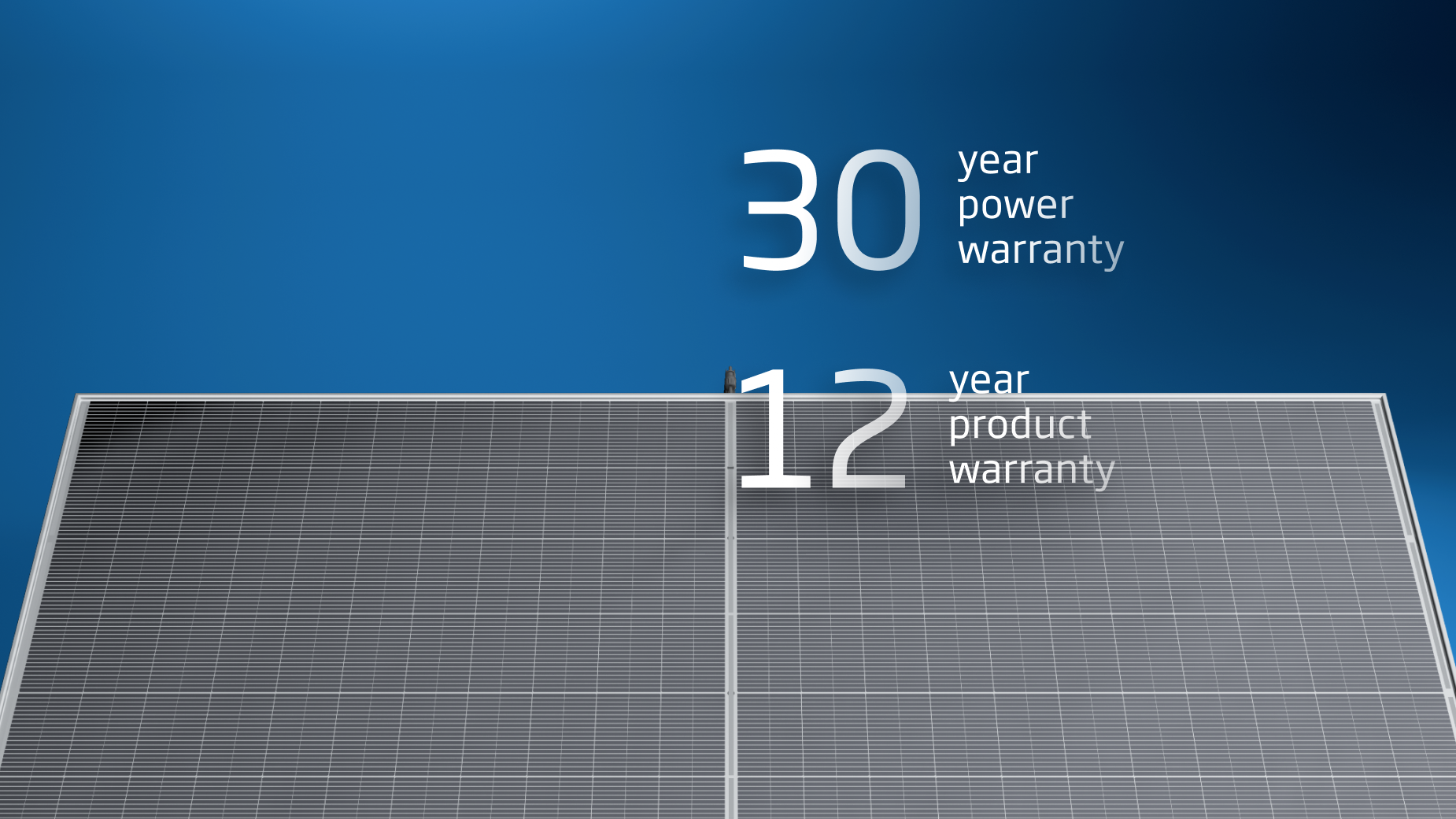

Ultra-low 0.35% annual degradation and a 30-year power warranty

Lower System Costs, Greater Design Flexibility

Engineered for scale, the Vertex N G3 760W can reduce the number of modules required per installation and support more efficient system planning in suitable utility and industrial system designs. Its low-voltage design enables higher string power, helping reduce BOS requirements and optimise LCOE. It is also designed to support efficient container space utilisation, helping improve logistics planning for large-scale projects across Australia.

Stronger Energy Yield for Australia's Solar Farms

The Vertex N G3 is designed to support energy generation across Australia's varied operating conditions. With 85% bifaciality, a temperature coefficient of -0.26%/°C, and strong low-light performance, the module supports yield performance across changing irradiance and temperature conditions.

Proven Reliability in Australian Conditions

Built with n-type i-TOPCon Ultra technology, the Vertex N G3 is designed to support high power, high efficiency, and long-term performance for Australia's utility-scale and industrial solar applications. Its lower temperature coefficient helps reduce power loss as module temperature rises, supporting performance stability in hotter operating conditions.
