Vertex N 650W Shield Module

TSM-NED19RC.20

Download Datasheet >

132

No. of Cells

650 W

Maximum Power Output

24.1 %

Maximum Efficiency

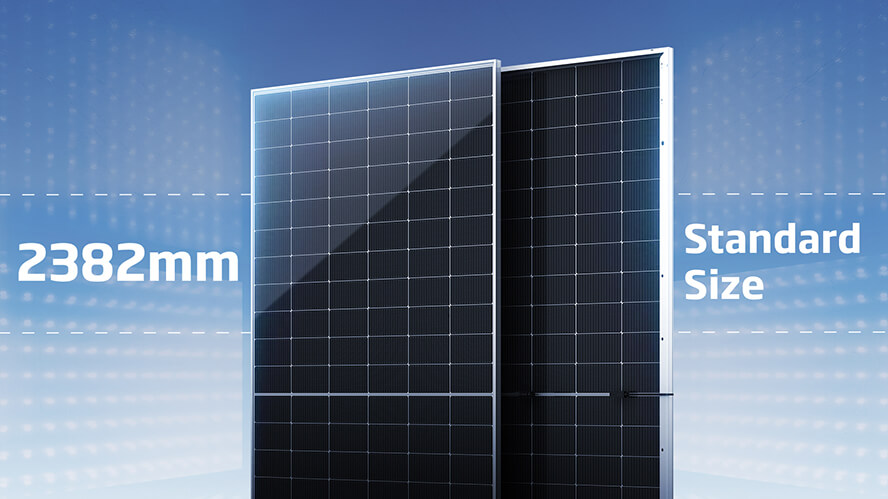

2382 * 1134 * 30 mm

Module Dimensions

Vertex N Shield Module Features

High Hail Resistance

Proven to withstand 75mm hailstones at a 60° tilt angle

Certified High Fire Resistance

IEC Fireproof A+A
EN13501-1 Class B with FIGRA ≤70W/s

High Wind Resistance

Static Mechanical Load: +8000/-6000 Pa

High Snow Resistance

Uneven Snow Load 6600Pa+
Withstand Snow Depths of Up to 2.2m

Designed for APAC's Extreme Climates

Built on Trinasolar's 210R solar cells and industry-standardized dimensions, the Shield module features reinforced glass and an optimized frame. These ensure high performance and reliability, even in APAC's extreme climates.

Bifacial Dual-Glass Design

Delivers 69 MPa surface compression stress, providing 2.5× higher impact resistance than conventional modules.

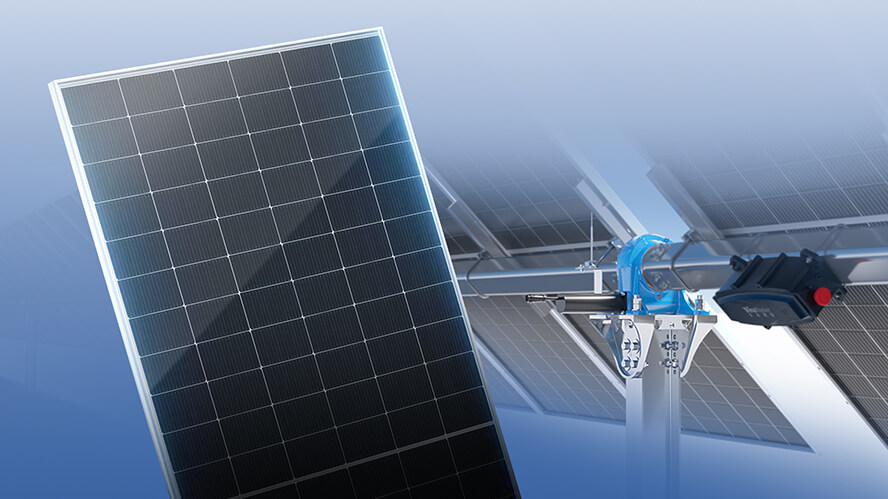

High Reliability with Optimized Frame Design

Ensures durability under extreme pressure with:
+30% downward mechanical load capacity
+67% upward mechanical load capacity.

Explore Trinasolar's Vertex N Portfolio for APAC

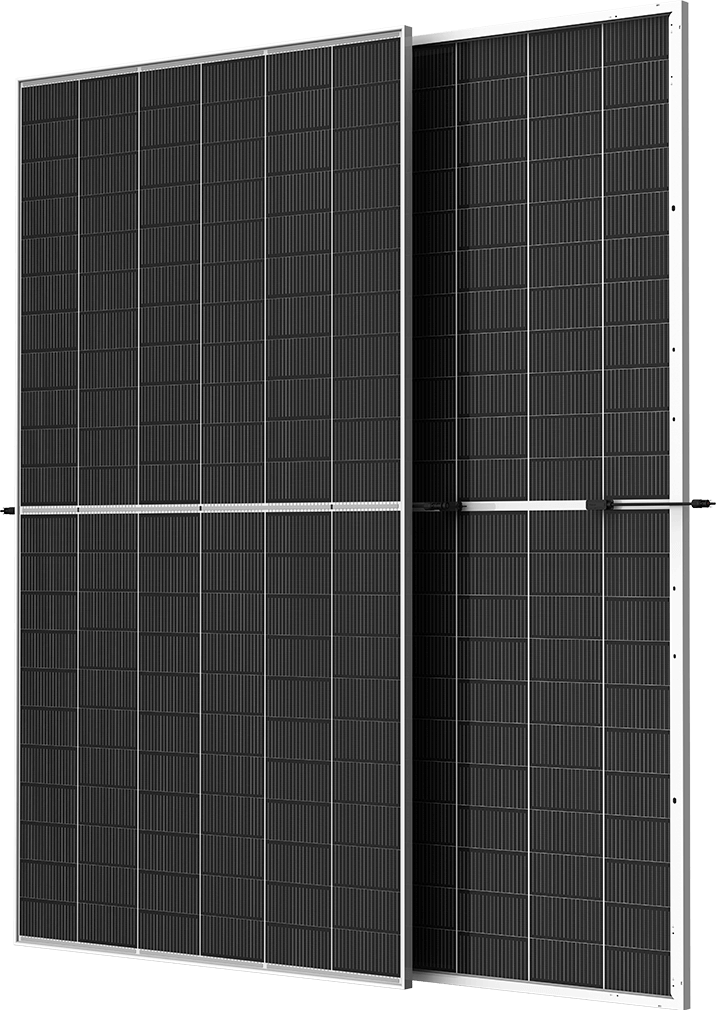

Vertex N 740W+ Bifacial Dual Glass Module

TSM-NEG21C.20

Learn More >

Vertex N 650W+ Bifacial Dual Glass Module

TSM-NEG19RC.20

Learn More >

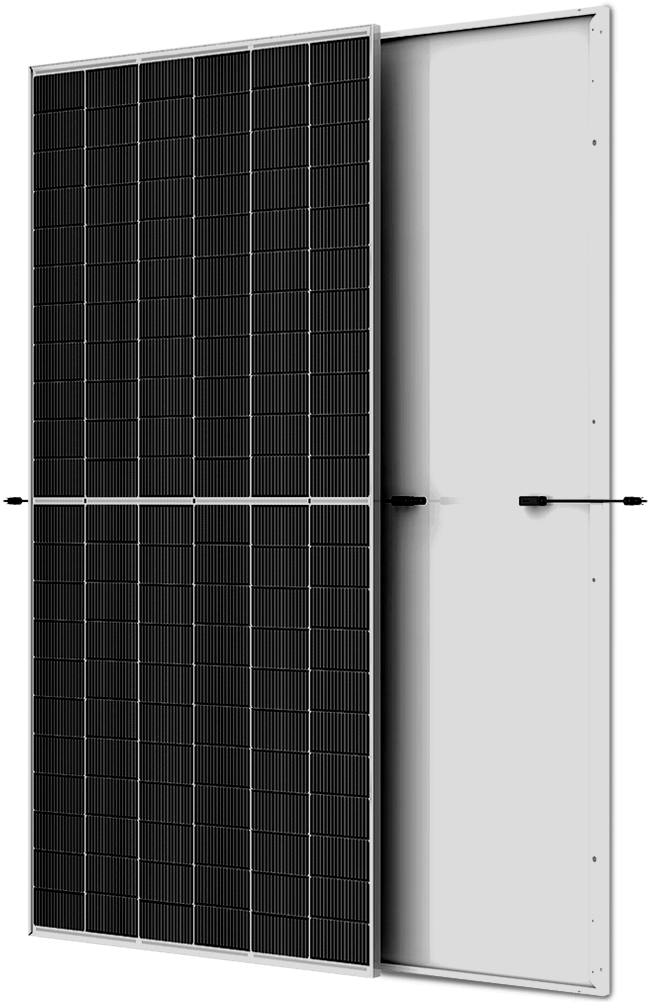

Vertex N 645W+ Anti-Dust Module

TSM-NEG19RC.70

Learn More >

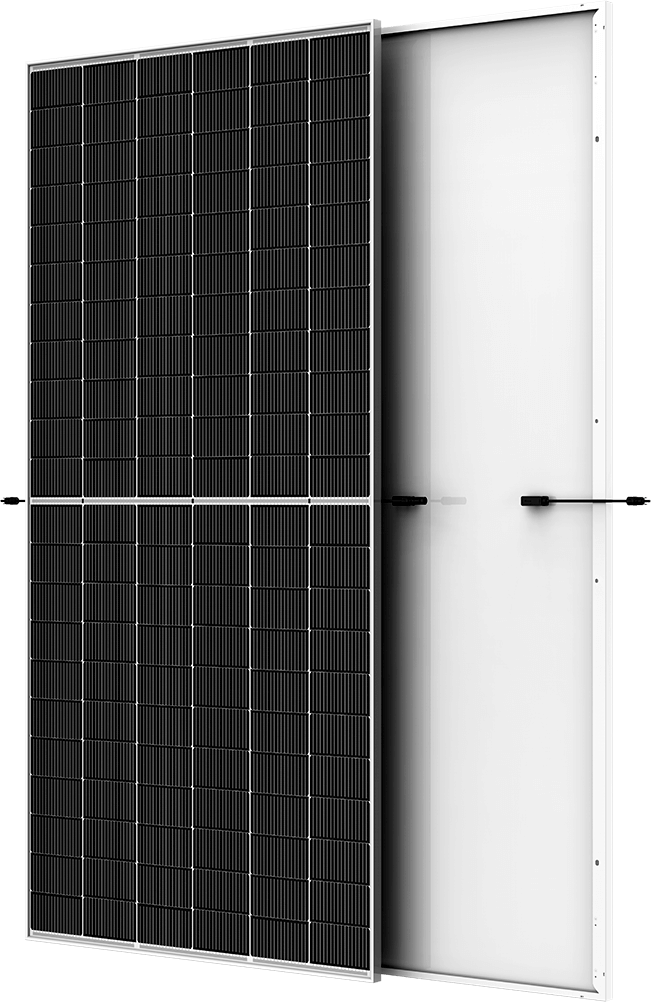

Vertex N 630W+ Backsheet Module
