Vertex N 645 W+

TSM-NED19RC.20

Datasheet Download >

132 Cells

Cell Number

645 W

Maximum Power Output

23.9 %

Maximum Efficiency

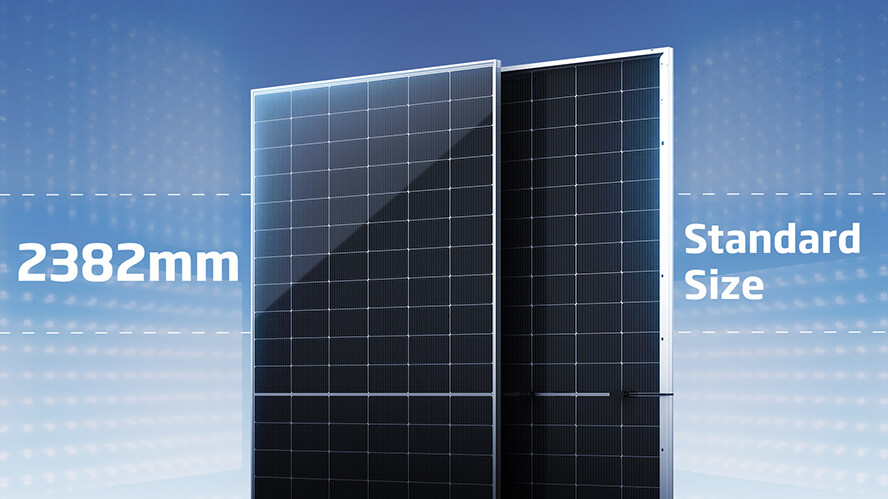

2382 * 1134 * 30 mm

Module Dimensions

Key Advantages

High Hail Resistance

Passes both the IEC 55 mm hail impact test and the HW4 40 mm hail test

High Fire Resistance

IEC fire class A + A,
EN13501-1 Class B (FIGRA 19 W/s)

High Wind Resistance

Static mechanical load: +7000 / -5000 Pa

High Snow Resistance

Withstands uneven snow load up to 6600 Pa and up to 2.2 m thick

High power, high returns

Built on Trinasolar’s 210 mm platform, the Vertex N Shield delivers up to 645 W+ with 23.9% efficiency. Its low-voltage design enables longer strings, reducing BOS and LCOE for maximum energy yield.

Reliability that inspires confidence

Engineered for long-term stability, the NED19RC.20 maintains consistent performance in harsh environments, reducing system risk and ensuring dependable operation throughout its lifespan.

Versatile by design

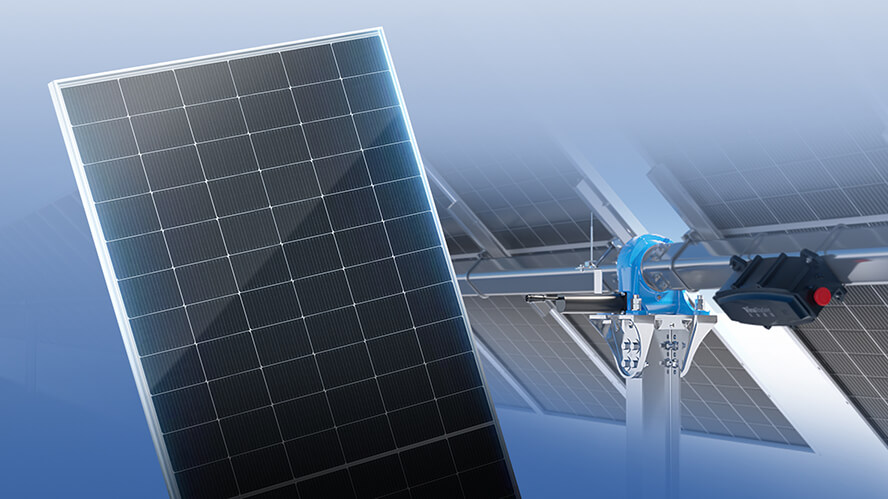

Compatible with both tracker and fixed-tilt systems, the Vertex N Shield integrates easily with standard inverters and mounts, backed by 12 year product and 30 year power warranties.
