Trinasolar

Vertex N 620W Shield Module

NED19RC.20

Download Datasheet

132 Cells

Cell Number

620 W

Maximum Power Output

23.0 %

Maximum Efficiency

2382 * 1134 * 30 mm

Module Dimensions

Key Advantages

High Hail Resistance

Certified to withstand 55 mm direct hail impact, and up to 75mm hail at a 45 degree angle.

High Fire Resistance

UL 61730 Fire Type 30 offers Class A performance in all UL fire tests, exceeding industry standard.

High Wind Resistance

Extreme static mechanical load capacity of up to +6000/-4000Pa.

High Snow Resistance

Rated for uneven snow loads up to +6600Pa, equating to a snow depth of 7.2 ft.

High Power, High Efficiency

With the same electrical characteristics as our standard medium-format N-Type module, the Shield module leverages Trina Solar’s innovative 210 mm technology platform and patented TOPCon technology, delivering up to 620W of power with 23.0% efficiency.

High Reliability

Overall Highest Achiever per RETC's "2025 PV Module Index".

Reinforced Dual Glass Assembly

With two layers of 2.5mm high-strength glass of surface compression stress exceeding 69 MPa, this module offers an impact energy resistance 2.5X greater than conventional modules, capable of resisting baseball-sized hail.

Optimized Load Performance for Any Scenario

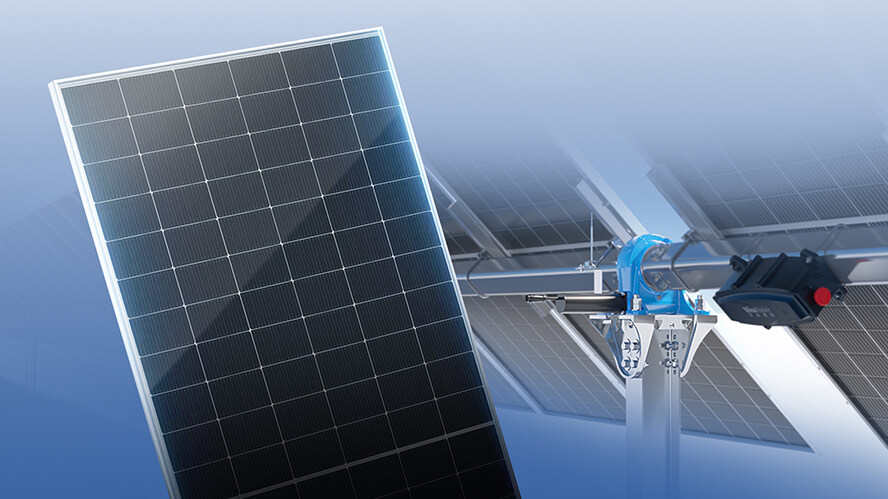

The ultra-durable Shield module is engineered to withstand extreme conditions, delivering up to +7000/-5000Pa in fixed-tilt setups and up to +3600/-3000Pa on trackers—even with a compact 790mm purlin. This design boosts load capacity while reducing racking material and overall system costs.

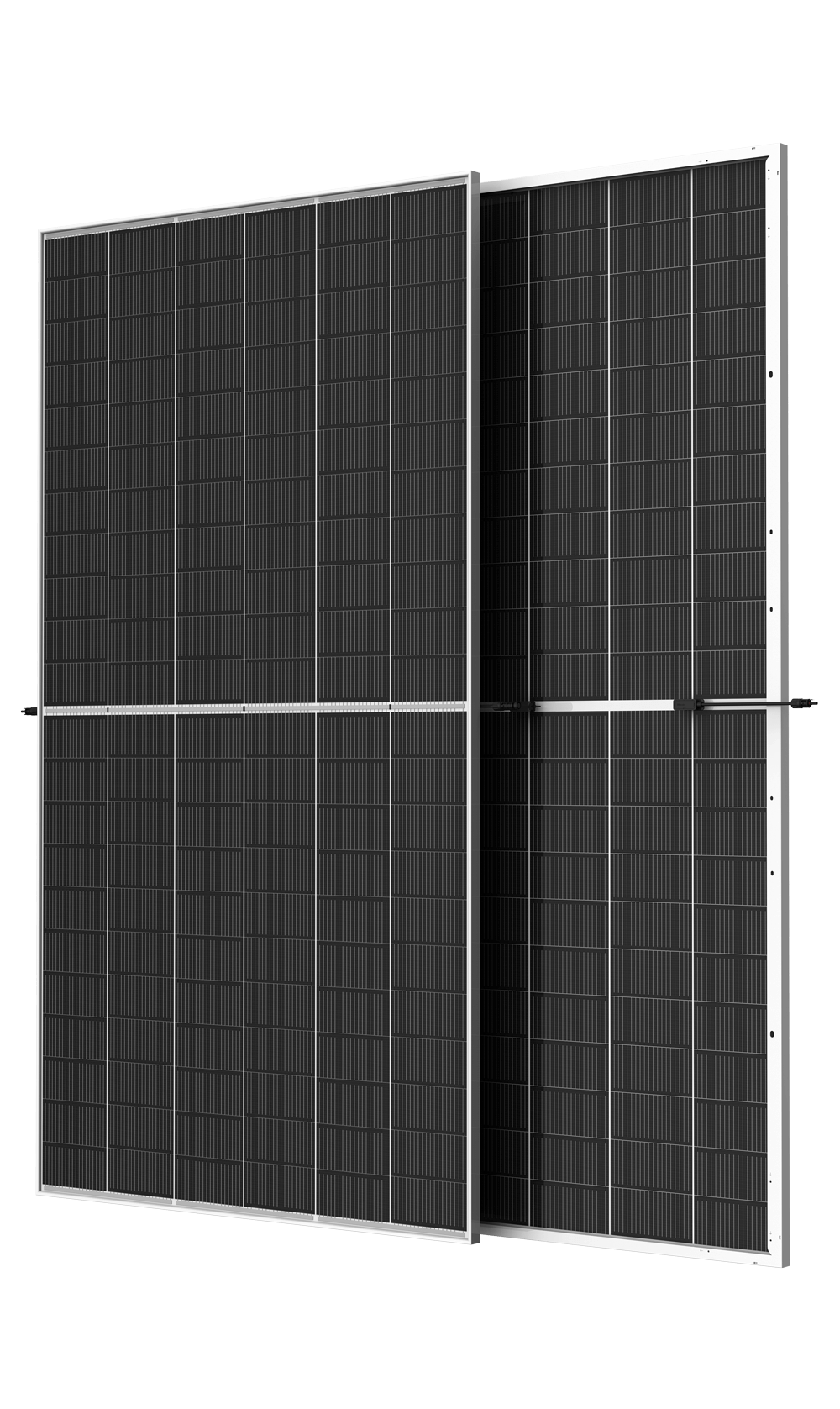

Vertex N Shield Module

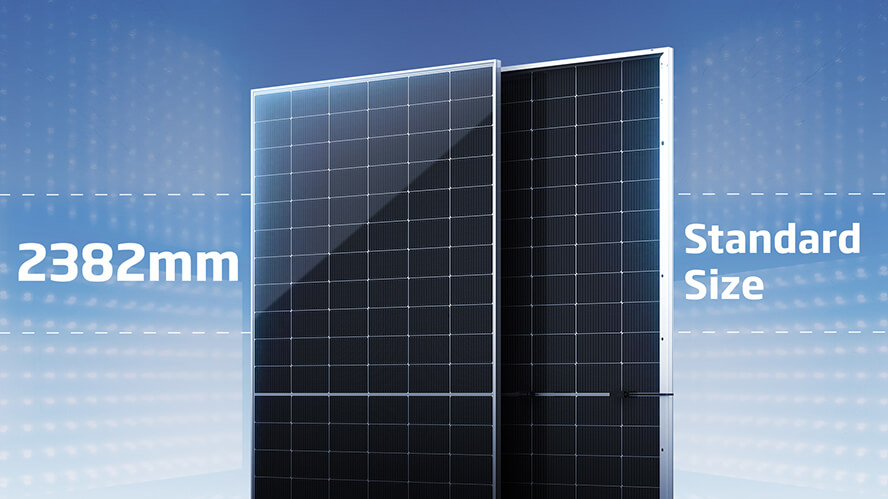

This module utilizes Trinasolar's pioneering 210R rectangular wafer design for a standard size of 2382mm*1134mm. With reinforced glass and an optimized frame, it performs reliably well in extreme climates.

Product Series

Vertex N 725W Bifacial Dual Glass Module

NEG21C.20

Learn More >

Vertex N 620W Bifacial Dual Glass Module

NEG19RC.20

Learn More >

Vertex N 620W Shield Module

NED19RC.20

Learn More >

Vertex N 620W Bifacial 2000V Dual Glass Module

NFG19RC.20

Learn More >

Trina Storage

Advanced, Flexible, High-efficiency ESS

Learn More >

Success Stories

Smithville Solar Project, Texas, USA

In the heart of Texas, a newly commissioned 1.4-megawatt (MW) solar project in the City of Smithville showcases how innovative technology and strategic partnerships can overcome challenges to deliver clean, reliable energy.

2,376 bifacial Vertex N
TOPCon modules

PV Module

Vanguard-2P

Tracker Type

1.4MW

System Size

November 2024

Ground Mount

Inspira Health Center Project

Inspira Health is a charitable nonprofit healthcare organization and a regional leader in physician training, with four medical centers, two comprehensive cancer centers, multiple specialty health centers throughout New Jersey.

566 bifacial

Vertex N TOPCon modules

585W

Maximum Power

331kW

System Size

November 2024

Roof mount
